3/4" x 3/4" PVC Camlock Fittings - Plastic Hose Coupler - Poly Type B Female Cam Lock Hose Adapter - Male Threaded NPT Cam & Groove

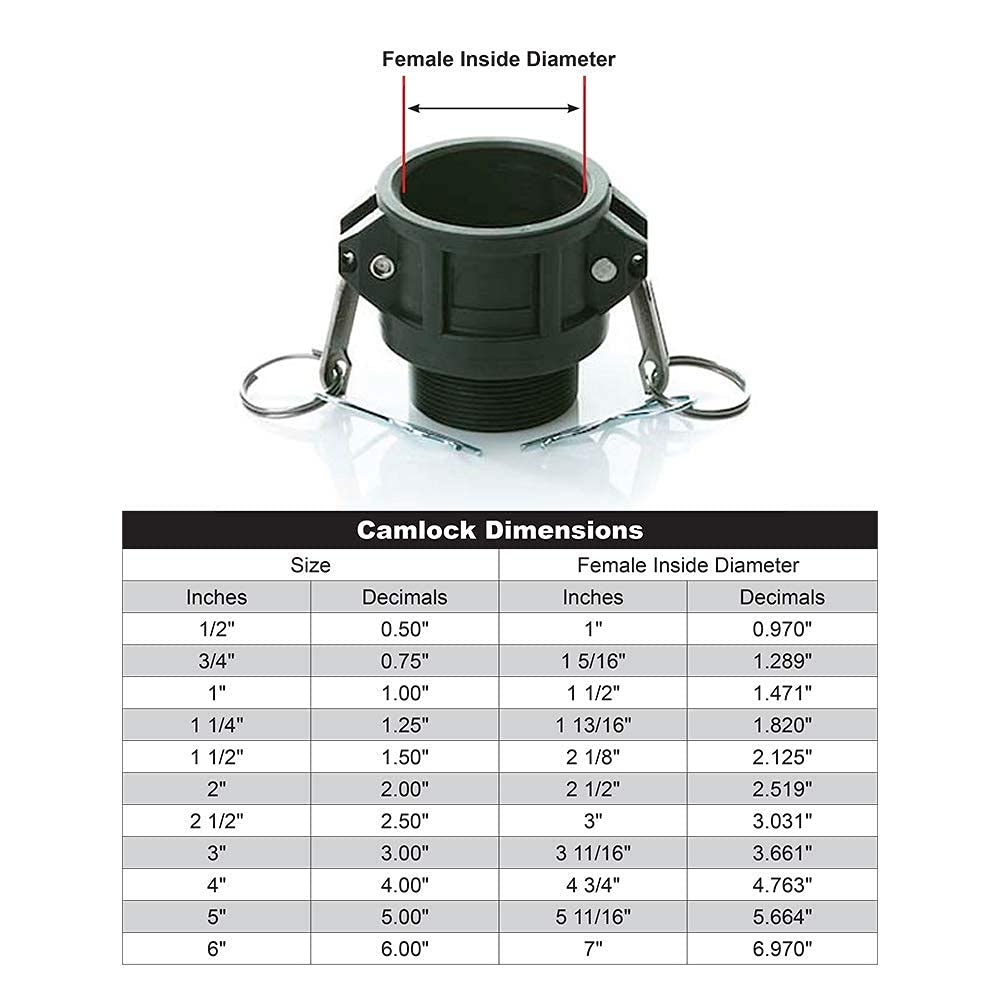

Type "B" polypropylene 3/4 inch female camlock coupler to 3/4 inch male NPT threads. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Connections: The female side of this adapter will only connect to 3/4 inch male camlock. The male threaded side of this adapter will only connect to a 3/4 inch female National Pipe Tapered (NPT) or National Pipe Straight Hose (NPSH) thread. For example, PVC or metal pipe fitting. Camlock Dimensions:Size - 0.75Female Inside Diameter - 1.289Warning: Polypropylene cam & groove should not be mixed with metal fittings. We recommend using polypropylene with other poly, plastic, pvc, banjo type camlock fittings.How it works:To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.Cam and Groove Couplings Industries:ChemicalSanitaryGovernmentStorageDry bulk PetroleumApplications:Reverse osmosis systemsWater treatmentWater transportIrrigationWaste / vacuum trucksHydraulic oil, coolants, gasoline and petroleum productsSalt waterWaste waterChemical movement & storage

• Type "B" PVC Camlock Hose Fitting
• Camlock Size - 3/4 inch Female
• Thread Size - 3/4 inch Male National Pipe Thread (NPT)
• Maximum Operating Pressure: 125 PSI
• Polypropylene Black Plastic (Poly) Cam & Groove (Gasket Included)
